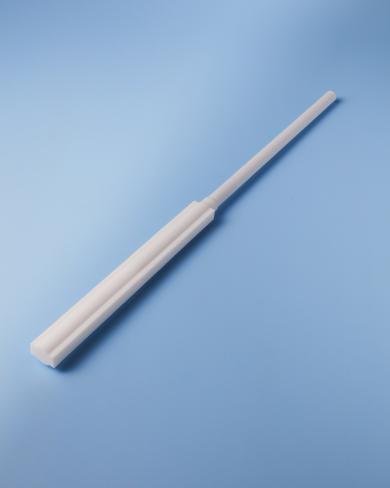

PTFE Rod Baffle
Rod Baffles are used to increase agitation and promote thorough mixing.
They feature a stainless steel core fully encapsulated in PTFE.
Can be assembled with corresponding Compression Fitting.
- Virgin grade PTFE conforming to FDA and USP Class VI.
- Chemical Resistance is virtually total.
- Temperature Range, -200°C to 260°C (-328°F to 500°F).
- Shelf life is considered indefinite within the confines of normal use and storage conditions.
- Autoclavable.
| Item Number | Diameter | Length | Width | |
|---|---|---|---|---|
| PC708.008.150 | Shaft 8mm, Baffle 12mm | Shaft 150mm, Baffle 150mm, Total 300mm | Baffle 16mm | Contact Us |
| PC708.008.200 | Shaft 8mm, Baffle 12mm | Shaft 200mm, Baffle 150mm, Total 350mm | Baffle 16mm | Contact Us |
| PC708.008.250 | Shaft 8mm, Baffle 12mm | Shaft 250mm, Baffle 150mm, Total 400mm | Baffle 16mm | Contact Us |
| PC708.012.150 | Shaft 12mm, Baffle 15mm | Shaft 150mm, Baffle 200mm, Total 350mm | Baffle 20mm | Contact Us |
| PC708.012.200 | Shaft 12mm, Baffle 15mm | Shaft 200mm, Baffle 200mm, Total 400mm | Baffle 20mm | Contact Us |
| PC708.012.250 | Shaft 12mm, Baffle 15mm | Shaft 250mm, Baffle 200mm, Total 450mm | Baffle 20mm | Contact Us |
| PC708.016.150 | Shaft 16mm, Baffle 22mm | Shaft 150mm, Baffle 250mm, Total 400mm | Baffle 35mm | Contact Us |
| PC708.016.200 | Shaft 16mm, Baffle 22mm | Shaft 200mm, Baffle 250mm, Total 450mm | Baffle 35mm | Contact Us |
| PC708.016.250 | Shaft 16mm, Baffle 22mm | Shaft 250mm, Baffle 250mm, Total 500mm | Baffle 35mm | Contact Us |
